Model Number:469-P5-HI-A20-E
Brand:General Electric
Control Power Range:90 to 300 VDC or 70 to 265 VAC
Frequency Range:48-62 Hz
Analog Outputs:4 x 0 to 1 mA
Digital Inputs:9 opto-isolated inputs
Operating Temperature:-40°C to +60°C
Storage Temperature:-40°C to +80°C
Phase Current Inputs:5 A phase CT secondaries
Overvoltage Category:II
Pollution Degree:2
Enclosure Rating:20-X
Insulation Voltage:300 V

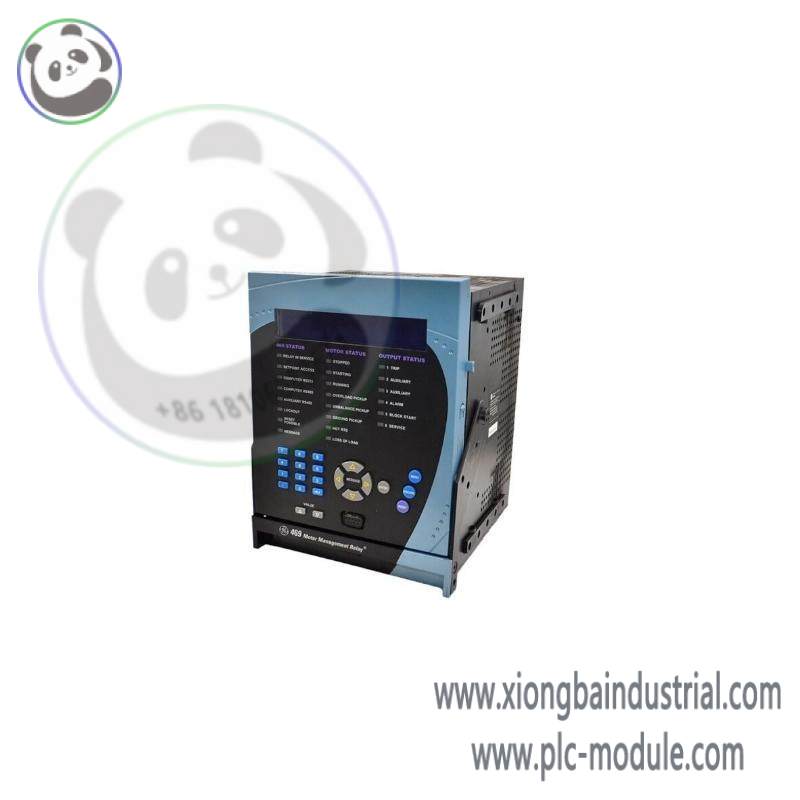

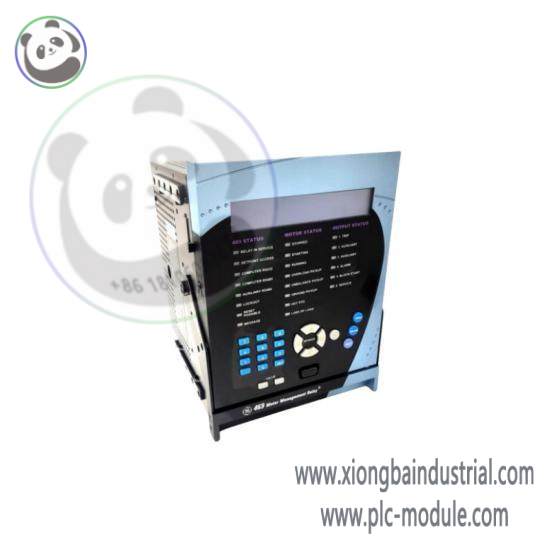

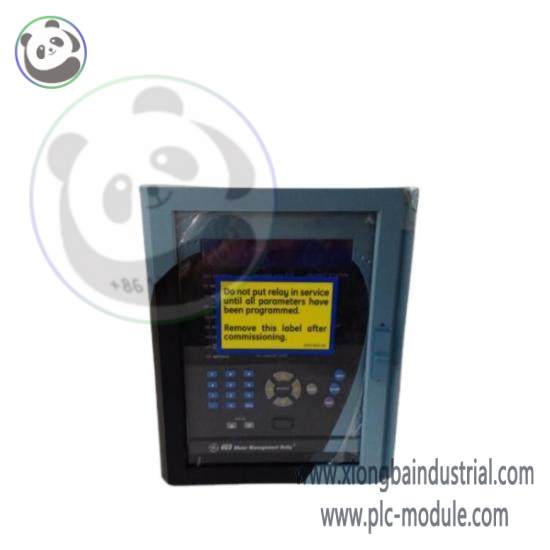

The GE 469-P5-HI-A20-E is a state-of-the-art Motor Management Relay that ensures optimal performance and safety for industrial motors. It integrates multiple RTD inputs, allowing it to monitor and report on the actual temperature and hottest point of the motor system. With three-wire RTDs composed of 100 ohm Nickel, 120 ohm Nickel, 10 ohm Copper, and 100 ohm Platinum, this relay provides precise temperature management. The device supports a wide input voltage range, making it adaptable to various industrial settings. Additionally, it features four analog outputs and nine opto-isolated digital inputs, providing versatile connectivity options. Designed for harsh chemical environments, the unit comes with conformal coating for added durability. The 469-P5-HI-A20-E operates within a broad temperature range (-40°C to +60°C) and offers a larger LCD display for improved visibility and ease of use.
